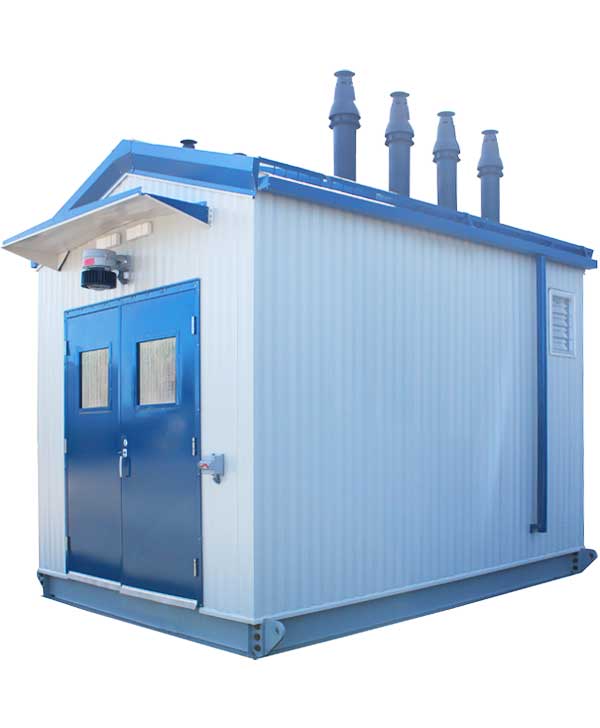

Modular Mechanical Room

Product Description

The Tamas Modular Mechanical Room provides a fully engineered, ready-to-install solution designed to simplify mechanical system deployment while maintaining exceptional performance and reliability.

Every Tamas mechanical room is pre-engineered for specific site applications and delivered at a fixed cost, offering a faster installation process and reduced on-site labour. Each unit is designed in 3D and meets all relevant industry standards and approval ratings, ensuring quality and consistency across every build. Systems are fully customizable, allowing for flexibility in design and functionality to meet the unique demands of each project.

Product Applications

  • Boiler Packages / Heating Systems
  • Pumping Systems
  • Variable Frequency Drives (VFDs)
  • Snow and Ice Melting Systems
Read More ▾

Features

  • Custom Custom Designed Meets any site requirements
  • Plug-and-Play Plug-&-Play Pre-engineered, tested, and ready to connect.
  • Applications Multiple Applications Snow Melt, Heating, Pumping and more.
Examples Configurations Resources

System Overview (As Shown)

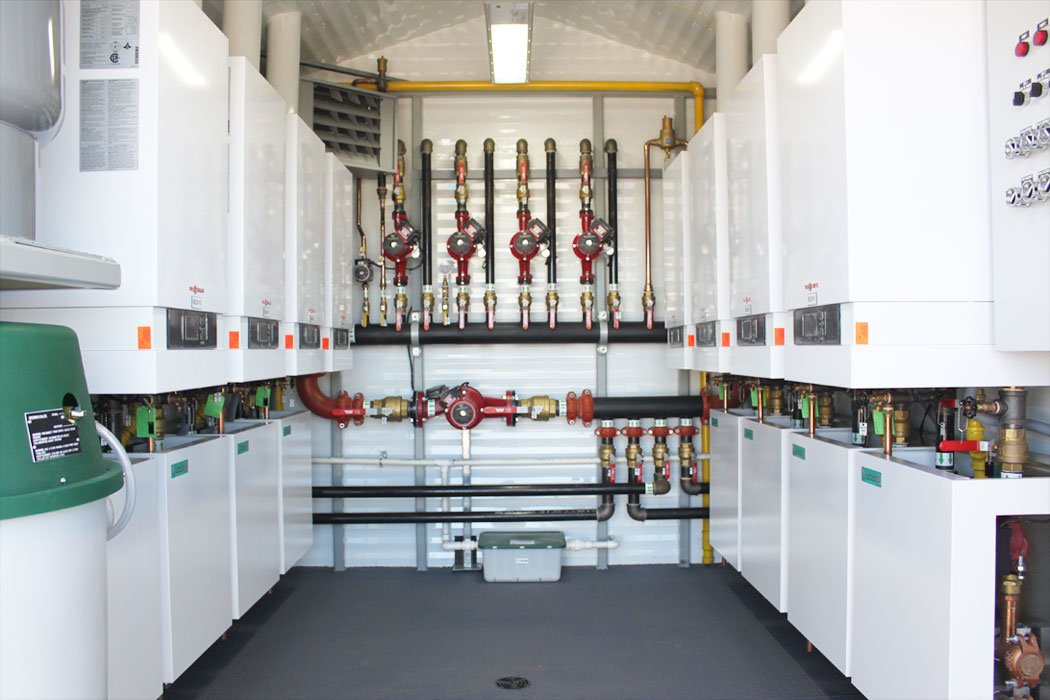

The modular mechanical room shown here is configured for a snow and ice melting application. Utilizing eight Viessmann boilers, the system is built with full redundancy, allowing routine maintenance without the need for system shutdown. The total system load is 2.8 million BTU, supplied through two boiler loops that connect directly to the main system loop via dual primary-secondary connections.

A Grundfos UPS80-80F system pump provides circulation through the main loop, ensuring proper flow to each of the four zone pumps (Grundfos UPS32-160F), which draw from the main loop through closely spaced tees.

Once delivered to site, the system requires only simple connections to and from the designated zones, significantly reducing installation time and ensuring quick commissioning.

Product Specifications

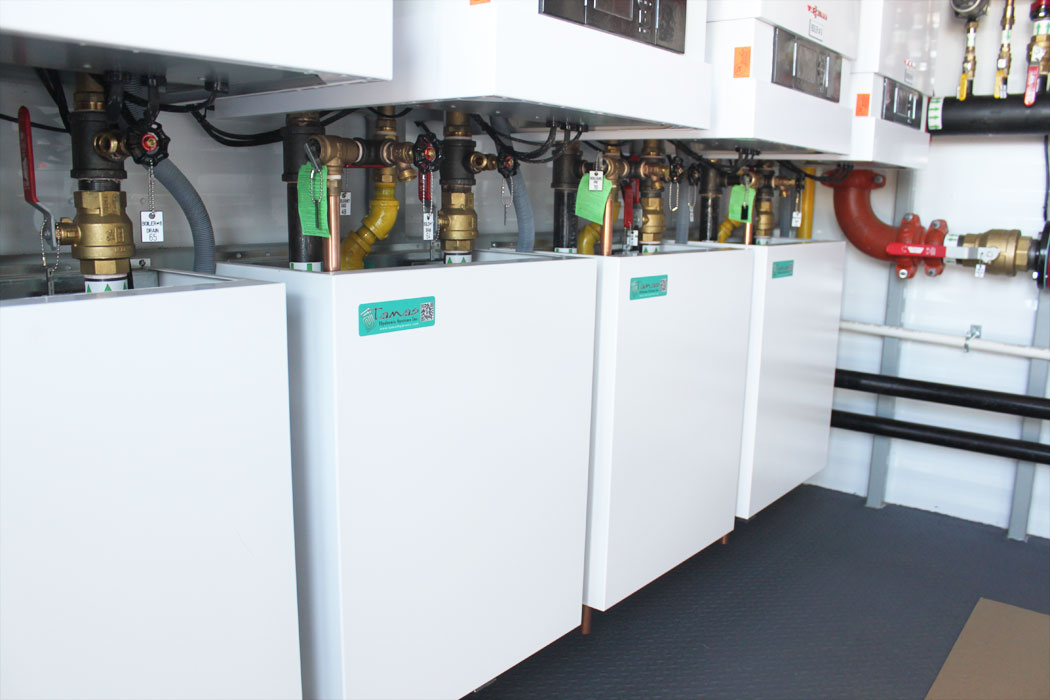

  • Eight Viessmann Vitodens 200 Modulating Condensing Boilers (352 MBH each)
  • Eight Grundfos UPS26-99BF Boiler Pumps
  • Four Grundfos UPS32-160F Zone Pumps
  • One Grundfos UPS80-80F System Pump
  • System Neutralization Kit
  • Expansion Tank

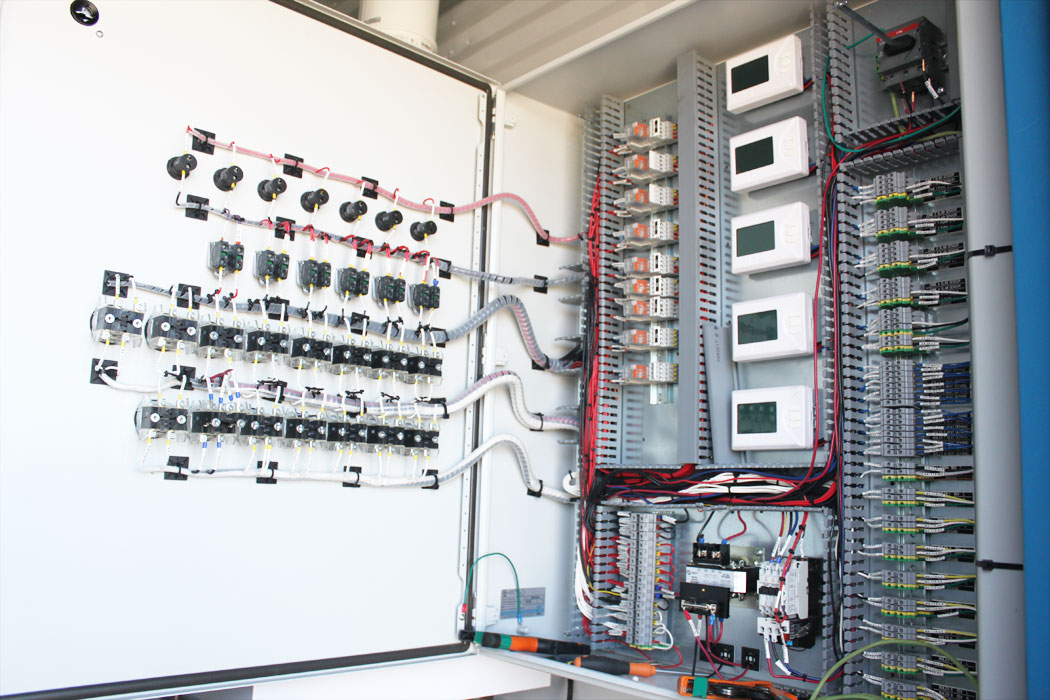

  • Central Pre-Wired Control Box for Electrical Systems

Custom Order

The Tamas Modular Mechanical Room is custom made for each job specification and is available in multiple configurations. Contact us to inquire about a package for your job today!
