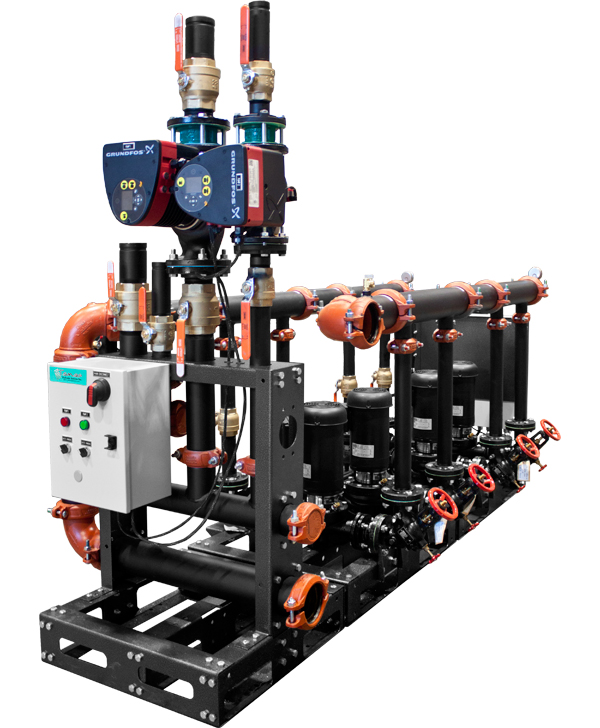

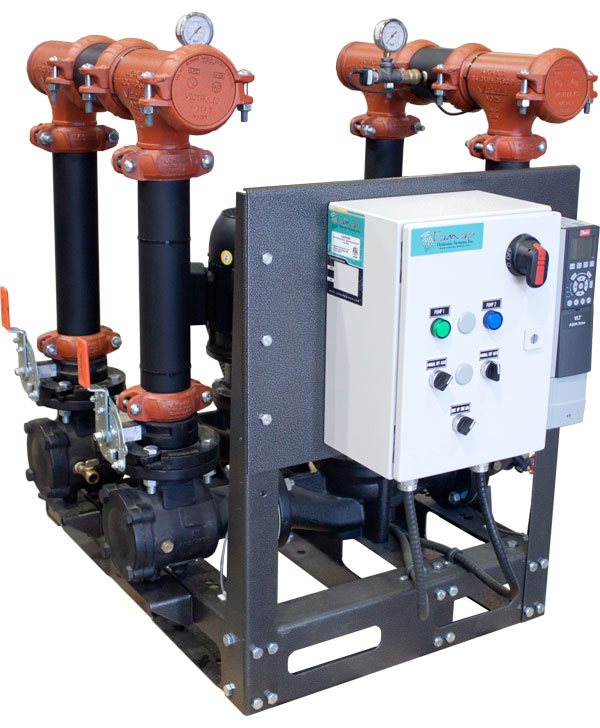

Heating/Cooling Pump Package

Product Description

Tamas Hydronic Heating/Cooling Pump Packages are engineered for versatility, performance, and reliability in both heating and cooling applications. Designed to adapt to a wide range of system requirements, these packages can be configured in multiple ways to meet the specific demands of your project. Each system features high-efficiency pumps and a programmable Hydronic VFD capable of managing up to five pumps for precise control and energy-efficient operation.

Every package includes a factory-mounted control box with LED operational indicators and manual override switches, allowing operation in automatic (VFD run), manual (full output), or off modes. This setup enables safe and convenient servicing without interrupting building operation or compromising system performance. Complete with a triple-duty valve and suction guide, Tamas Hydronic Pump Packages deliver a ready-to-install, plug-and-play solution that simplifies setup, improves efficiency, and ensures dependable operation in both heating and cooling systems.

Read More ▾

Features

  • VFD VFD Control Logic Standby, Parallel, and Cascade applications.
  • Heating and Cooling Heating & Cooling Up to 5 pumps per VFD
  • Plug-and-Play Plug-&-Play Pre-engineered, tested, and ready to connect.
Configurations Resources
Model Number Cooling Pump Packages
T-C-2HG-VFD-C-TP80-1.5-208 Cooling Pump Package, 1.5HP-208V, (2) Pumps TP80-160, Triple Duty Valve and Suction Guide, Horizontal Connection and Cascade Control System
Model Number Heating Pump Packages
T-H-2HG-VFD-C-TP80-2-575 Heating Pump Package, 2HP-575V, (2) Pumps TP80, Triple Duty Valve and Suction Guide, Horizontal Connection and Cascade Control System
T-H-2HG-VFD-C-CR10/2-3-208 Heating Pump Package, 3HP-208V, (2) Pumps CR10-2, Triple Duty Valve and Suction Guide, Horizontal Connection and Cascade Control System
T-H-2VG-VFD-C-TP80-3-208 Heating Pump Package, 3HP-208V, (2) Pumps TP80-240/2, Triple Duty Valve and Suction Guide, Vertical Connection and Cascade Control System
T-H-2HG-VFD-C-TP80-1.5-208 Heating Pump Package, 1.5HP-208V, (2) Pumps TP80-80/4, Triple Duty Valve and Suction Guide, Horizontal Connection and Cascade Control System
T-H-2HG-VFD-C-TP80-3-208 Heating Pump Package, 3HP-208V, (2) Pumps TP80-160/2, Triple Duty Valve and Suction Guide, Horizontal Connection and Cascade Control System
T-H-2VG-VFD-C-2.5LP-5-208 Heating Pump Package, 5HP-208V, (2) Pumps 2.5LP5/4.6, Triple Duty Valve and Suction Guide, Vertical Connection and Cascade Control System
T-H-2HG-VFD-C-2.5LP-7.5-208 Heating Pump Package, 7.5HP-208V, (2) Pumps 2.5LP5/5, Triple Duty Valve and Suction Guide, Horizontal Connection and Cascade Control System
T-H-2VG-VFD-C-3.0LM8/7.4-5-208 Heating Pump Package, 5HP-208V, (2) Pumps 3.0LM8/7.4, Triple Duty Valve and Suction Guide, Vertical Connection and Cascade Control System
T-H-2VG-VFD-C-3.0LM-5-208 Heating Pump Package, 5HP-208V, (2) Pumps 3.0LM8/7.4, Triple Duty Valve and Suction Guide, Vertical Connection and Cascade Control System
T-H-2HG-VFD-C-4.0LP-7.5-208 Heating Pump Package, 7.5HP-208V, (2) Pumps 4.0LP5/4.3, Triple Duty Valve and Suction Guide, Horizontal Connection and Cascade Control System
T-H-2VG-VFD-C-3.0LM-3-208 Heating Pump Package, 3HP-208, (2) Pumps 3.0LM6/6.3, Triple Duty Valve and Suction Guide, Vertical Connection and Cascade Control System
T-H-2HG-VFD-C-3.0LP-7.5-208 Heating Pump Package, 7.5HP-208V, (2) Pumps 4.0LP5/4.3, Triple Duty Valve and Suction Guide, Horizontal Connection and Cascade Control System
T-H-2VG-VFD-C-3.0LP-7.5-575 Heating Pump Package, 7.5HP-208V, (2) Pumps 3.0LP5/4.9, Triple Duty Valve and Suction Guide, Vertical Connection and Cascade Control System
